Part numbers, specifications and machine model numbers are for reference purposes.
| METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
| ON02T1014 | HİDROMEK 220 | HMK220ST | KAZMA UCU |
| ON02A2012 | HİDROMEK 220- 35 mm | HMK220 | ADAPTÖR |
| ON31P3010 | HİDROMEK 220 | PİM ( 19 X 106 ) | PİM |
| ON02T1243 | HMK 370 | HMK370STD | KAZMA UCU |
| ON02A2015 | HİDROMEK 370 - 50 mm | HMK370 | ADAPTÖR |
| ON31P3021 | HMK 370 | PİM ( 24 X 135 ) | PİM |

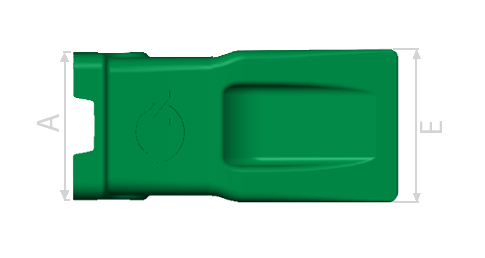

| METALON NO | MAKİNE MODEL | A | B | C | D | E |
| ON02T1014 | HİDROMEK 220 | 105 | 98 | 5 | 210 | 106 |
| ON02T1243 | HMK 370 | 143 | 144 | 13 | 275 | 139 |

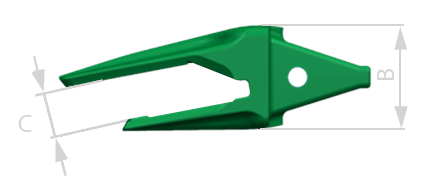

| METALON NO | MAKİNE MODELİ | A | B | C | D |
| ON02A2012 | HİDROMEK 220- 35 mm | 335 | 110 | 35 | 105 |
| ON02A2013 | HİDROMEK 220 - 40 mm | 335 | 110 | 45 | 105 |
| ON02A2014 | HİDROMEK 300 | 390 | 132 | 53 | 126 |
| ON02A2015 | HİDROMEK 370 - 50 mm | 395 | 144 | 52 | 128 |
| ON02A2016 | HİDROMEK 370 - 60 mm | 395 | 144 | 62 | 128 |
| METALON NO | MAKİNE MODEL | A | B | C |
| ON31P3010 | HİDROMEK 220 | 19 | 106 | |
| ON31S4005 | HİDROMEK 220 | 19 | ||
| ON31P3020 | HİDROMEK 300 | 23 | 130 | |
| ON31S4008 | HİDROMEK 300 | 23 | ||
| ON31P3021 | HMK 370 | 24 | 135 | |
| ON31S4009 | HMK 370 | 24 |
