Parça numaraları, teknik özellikler ve makine model numaraları referans amaçlıdır.
| METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
| ON02T1015 | HİDROMEK 220 | HMK220RC | KAZMA UCU |
| ON02A2012 | HİDROMEK 220 | HMK220 | ADAPTÖR |
| ON31P3010 | HİDROMEK 220 | PİM ( 19 X 106 ) | PİM-SEGMAN |
| ON02T1017 | HİDROMEK 300 | HMK300RC | KAZMA UCU |
| ON31P3020 | HİDROMEK 300 | PİM ( 23 X 130 ) | PİM-SEGMAN |
| ON02T1020 | HİDROMEK 370 | HMK370RC | KAZMA UCU |
| ON02A2015 | HİDROMEK 370 | HMK370 | ADAPTÖR |
| ON31P3021 | HİDROMEK 370 | PİM ( 24 X 135 ) | PİM-SEGMAN |

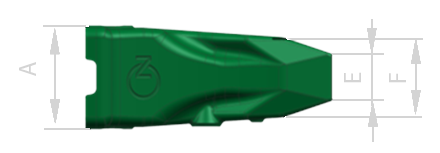

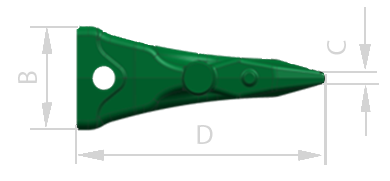

| METALON NO | MAKİNE MODEL | A | B | C | D | E | F |
| ON02T1015 | HİDROMEK 220 | 108 | 110 | 12 | 250 | 48 | 80 |
| ON02T1017 | HİDROMEK 300 | 127 | 129 | 13 | 280 | 56 | 97 |
| ON02T1020 | HİDROMEK 370 | 131 | 138 | 14 | 310 | 55 | 94 |

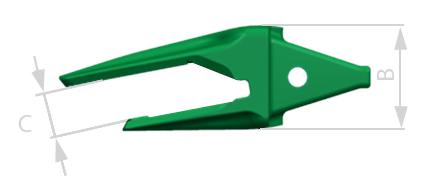

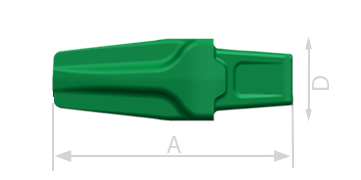

| METALON NO | MAKİNE MODEL | A | B | C | D |
| ON02A2012 | HİDROMEK 220 | 335 | 110 | 35 | 105 |
| ON02A2013 | HİDROMEK 220 | 335 | 110 | 45 | 105 |
| ON02A2015 | HİDROMEK 370 | 395 | 144 | 52 | 128 |
| ON02A2016 | HİDROMEK 370 | 395 | 144 | 62 | 128 |
| METALON NO | MAKİNE MODEL | A | B | C |
| ON31P3010 | HİDROMEK 220 | 19 | 106 | |
| ON31S4005 | HİDROMEK 220 | 19 | ||
| ON31P3020 | HİDROMEK 300 | 23 | 130 | |
| ON31S4008 | HİDROMEK 300 | 23 | ||
| ON31P3021 | HİDROMEK 370 | 24 | 135 | |
| ON31S4009 | HİDROMEK 370 | 24 |
