Parça numaraları, teknik özellikler ve makine model numaraları referans amaçlıdır.
| METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
| ON01T1006 | DOOSAN DX140 | 2713-1221 | KAZMA UCU |
| ON01A2003 | DOOSAN DX140 | 2713-1222 | ADAPTÖR |
| ON31P3008 | DOOSAN DX140 | PİM(18 X 85)-SEGMAN | PİM-SEGMAN |
| ON01T1002 | DOOSAN DX225 | 2713-1217 | KAZMA UCU |
| ON01A2001 | DOOSAN DX225 | 2713-1218 | ADAPTÖR |
| ON31P3009 | DOOSAN DX225 | PİM( 19 X 98 )-SEGMAN | PİM-SEGMAN |
| ON01T1004 | DOOSAN DX300 | 2713-1219 | KAZMA UCU |
| ON01A2002 | DOOSAN DX300 | 2713-1220 | ADAPTÖR |
| ON31P3018 | DOOSAN DX300 | PİM ( 22 X 110 )-SEGMAN | PİM-SEGMAN |
| ON01T1008 | DOOSAN DX340 | 2713-0032 | KAZMA UCU |
| ON01A2004 | DOOSAN DX340 | 2713-0033 | ADAPTÖR |
| ON31P3020 | DOOSAN DX340 | PİM( 23 X 130 )-SEGMAN | PİM-SEGMAN |
| ON01T1010 | DOOSAN DX420 | 2713-1236 | KAZMA UCU |
| ON01A2005 | DOOSAN DX420-50mm | 2713-1237 | ADAPTÖR |
| ON31P3024 | DOOSAN DX420 | PİM( 25 X 150 )-SEGMAN | PİM-SEGMAN |
| ON01T1012 | DOOSAN DX520 | 2713-1260 | KAZMA UCU |
| ON01A2150 | DOOSAN DX520-60mm | 2713-1270 | ADAPTÖR |
| ON31P3027 | DOOSAN DX520 | PİM ( 28 X 165 ) | PİM-SEGMAN |
| ON01T1013 | DOOSAN DX850 | 2713-1280 | KAZMA UCU |
| ON01A2010 | DOOSAN DX850 | 2713-1290 | ADAPTÖR |
| ON31P3028 | DOOSAN DX850 | PİM ( 28 X 195 ) | PİM-SEGMAN |

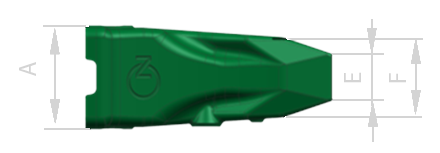

| METALON NO | MAKİNE MODEL | A | B | C | D | E | F |
| ON01T1006 | DOOSAN DX140 | 84 | 85 | 8 | 215 | 38 | 67 |
| ON01T1002 | DOOSAN DX225 | 97,5 | 100 | 12 | 250 | 46 | 77 |
| ON01T1004 | DOOSAN DX300 | 111 | 113 | 14 | 280 | 49 | 86 |
| ON01T1008 | DOOSAN DX340 | 129 | 128 | 14 | 305 | 52 | 95 |
| ON01T1010 | DOOSAN DX420 | 155 | 144 | 10 | 350 | 61 | 128 |
| ON01T1012 | DOOSAN DX520 | 170 | 164 | 11 | 385 | 73 | 140 |
| ON01T1013 | DOOSAN DX850 | 200 | 200 | 22 | 470 | 92 | 160 |

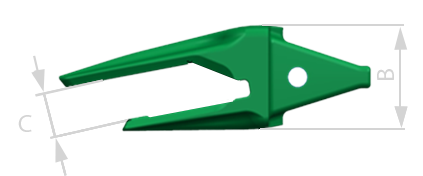

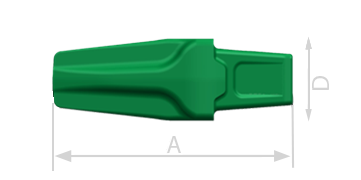

| METALON NO | MAKİNE MODEL | A | B | C | D |
| ON01A2003 | DOOSAN DX140 | 278 | 87 | 41 | 83 |
| ON01A2001 | DOOSAN DX225 | 320 | 101 | 42 | 96 |
| ON01A2002 | DOOSAN DX300 | 380 | 111 | 42 | 109 |
| ON01A2004 | DOOSAN DX340 | 390 | 130 | 52 | 128 |
| ON01A2005 | DOOSAN DX420-50mm | 435 | 144 | 44 | 146 |
| ON01A2006 | DOOSAN DX420-60mm | 435 | 144 | 65 | 146 |
| ON01A2007 | DOOSAN DX420-rampa | 435 | 144 | 65 | 146 |
| ON01A2150 | DOOSAN DX520-60mm | 510 | 174 | 65 | 153 |
| ON01A2008 | DOOSAN DX520-70mm | 510 | 174 | 75 | 153 |
| ON01A2009 | DOOSAN DX520-80mm | 510 | 174 | 85 | 153 |
| ON01A2010 | DOOSAN DX850 | 640 | 192 | 92 | 180 |
| ON01A2011 | DOOSAN DX850 |
| METALON NO | MAKİNE MODEL | A | B | C |
| ON31P3008 | DOOSAN DX140 | 18 | 85 | |
| ON31S4004 | DOOSAN DX140 | 18 | ||
| ON31P3009 | DOOSAN DX225 | 19 | 98 | |
| ON31S4005 | DOOSAN DX225 | 19 | ||
| ON31P3018 | DOOSAN DX300 | 22 | 110 | |
| ON31S4007 | DOOSAN DX300 | 22 | ||
| ON31P3020 | DOOSAN DX340 | 23 | 130 | |
| ON31S4008 | DOOSAN DX340 | 23 | ||
| ON31P3024 | DOOSAN DX420 | 25 | 150 | |
| ON31S4010 | DOOSAN DX420 | 25 | ||
| ON31P3027 | DOOSAN DX520 | 28 | 165 | |
| ON31S4012 | DOOSAN DX520 | 28 | ||
| ON31P3028 | DOOSAN DX850 | 28 | 195 | |
| ON31S4012 | DOOSAN DX850 | 28 |
